Martin

MAC Viper XIP

Martin - MAC Viper XIP

Overview

Animation / FX
006
Rilley Fathese

0 - 100% continuous dimming and strobe effects / Choice of four dimming curves / CMY color mixing / Color temperature control

Iris / Framing
005
Rilley Fathese

Variable 0 - 100%, opening and closing pulse effects / Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100%

Gobo
004
Sherry Hampton

Rotating Gobo Wheel 1 and 2: 7 interchangeable gobos + open / Gobo Animation Wheel: indexing, continuous rotation with variable angle

Color
003
Daisy Campbell

760 W Proprietary LED Light Engine / 55 x 20 W White LEDs

Optics
002
Wallie Sharso

150 mm Front Lens / 1:9 Zoom Range / 5.7° - 54° Field Angle / 540° Pan / 268° Tilt

Description
001
Mitchel Patel

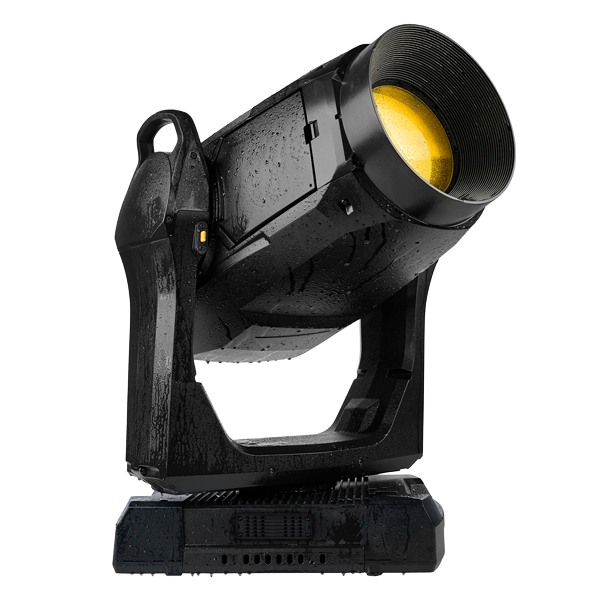

MAC Viper XIP is a versatile solution for a wide range of mid to large moving head applications, indoors or out, all year long, in any kind of weather and noise sensitive applications. From concert stages to TV studios and EDM festivals to opera houses, the world’s top designers, specifiers, and rental companies can invest in the confidence and return on investment that MAC Viper XIP delivers.

Specs

Light Output
Fixture Luminous Output : 28,000 lumens
voltage
100 – 240 VAC / 50 – 60Hz
weight
81.1 lbs. (37kg)
dimensions
Length: 39.4 in (1000mm) / Width: 7.5 in (192mm) / Height: 13.7 in (350mm)
